Adiabatic Tests¶
This notebook compares the analytical estimates from the literature for changes to a binary system's energy, eccentricity, and inclination to the n-body integrations of REBOUND. This notebook provides evidence for the justification of some of the implementation details found within AIRBALL, such as rmax and maximum_impact_parameter.
We begin by importing everything we'll need for running the stellar flybys and for making good-looking figures.
In [1]:
Copied!
from pathlib import Path
from _notebook_utils import save_and_display_figure
import rebound
import airball
import airball.units as u
from airball.tools import moving_median as ma
import numpy as np
from scipy.stats import maxwell
import matplotlib
import matplotlib.pyplot as plt
matplotlib.rcParams["text.usetex"] = True
%matplotlib inline
import matplotlib.style as style
style.use("tableau-colorblind10")
images = Path.cwd() / "images/adiabatic-tests"
images.mkdir(parents=True, exist_ok=True)
from pathlib import Path
from _notebook_utils import save_and_display_figure
import rebound
import airball
import airball.units as u
from airball.tools import moving_median as ma
import numpy as np
from scipy.stats import maxwell
import matplotlib
import matplotlib.pyplot as plt
matplotlib.rcParams["text.usetex"] = True
%matplotlib inline
import matplotlib.style as style
style.use("tableau-colorblind10")
images = Path.cwd() / "images/adiabatic-tests"
images.mkdir(parents=True, exist_ok=True)
Define constants and parameters¶
We also define some useful constants and parameters for setting up our system. We take the current values of Neptune's orbital elements but will first consider the planar case. Additionally, we pick a set of parameters for our stellar flyby as a specific example.
In [2]:
Copied!
pi = np.pi
twopi = 2.0 * pi
sun_mass = 1.0 * u.solMass # Msun
# Basic orbital elements of Neptune
planet_mass = 5.15e-05 * u.solMass
planet_a = 30.278 * u.au
planet_e = 0.0130 * u.dimensionless_unscaled
# More if you don't want Neptune to be planar.
planet_inc = 0.031 * u.rad
planet_omega = 4.338 * u.rad
planet_Omega = 2.299 * u.rad
# Set the orbital elements of the flyby star
# Simulate a randomly oriented, 1 solar mass stellar flyby with relative velocity of 5 km/s, and an impact parameter of 100 AU.
star = airball.Star(
m=1 * u.solMass,
b=125 * u.au,
v=5 * u.km / u.s,
inc=1.12 * u.rad,
omega=1.09 * u.rad,
Omega=0.97 * u.rad,
)
print("star.inc: {0:7.2f}".format(star.inc.to(u.deg)))
print("star.omega: {0:7.2f}".format(star.omega.to(u.deg)))
print("star.Omega: {0:7.2f}".format(star.Omega.to(u.deg)))
pi = np.pi
twopi = 2.0 * pi
sun_mass = 1.0 * u.solMass # Msun
# Basic orbital elements of Neptune
planet_mass = 5.15e-05 * u.solMass
planet_a = 30.278 * u.au
planet_e = 0.0130 * u.dimensionless_unscaled
# More if you don't want Neptune to be planar.
planet_inc = 0.031 * u.rad
planet_omega = 4.338 * u.rad
planet_Omega = 2.299 * u.rad
# Set the orbital elements of the flyby star
# Simulate a randomly oriented, 1 solar mass stellar flyby with relative velocity of 5 km/s, and an impact parameter of 100 AU.
star = airball.Star(
m=1 * u.solMass,
b=125 * u.au,
v=5 * u.km / u.s,
inc=1.12 * u.rad,
omega=1.09 * u.rad,
Omega=0.97 * u.rad,
)
print("star.inc: {0:7.2f}".format(star.inc.to(u.deg)))
print("star.omega: {0:7.2f}".format(star.omega.to(u.deg)))
print("star.Omega: {0:7.2f}".format(star.Omega.to(u.deg)))
star.inc: 64.17 deg star.omega: 62.45 deg star.Omega: 55.58 deg
Setup a two-body simulation and run a flyby simulation.¶
We define a function that returns a consistent REBOUND Simulation setup for convenience and reproducibility.
In [3]:
Copied!
def setup(
planet_mass=5.151383772628674e-05 * u.solMass,
planet_a=30.27762143269065 * u.au,
planet_e=0.012971767987242259 * u.dimensionless_unscaled,
planet_inc=0 * u.rad,
planet_omega=0 * u.rad,
planet_Omega=0 * u.rad,
planet_f=0 * u.rad,
):
# Set up a Sun-Neptune system.
sim = rebound.Simulation()
sim.add(m=sun_mass.value)
sim.add(
m=planet_mass.value,
a=planet_a.value,
e=planet_e.value,
inc=planet_inc.value,
omega=planet_omega.value,
Omega=planet_Omega.value,
f=planet_f.value,
)
sim.integrator = "whckl"
sim.ri_whfast.safe_mode = 0
sim.dt = 0.01 * sim.particles[1].P
sim.move_to_com()
return sim
sim = setup()
def setup(
planet_mass=5.151383772628674e-05 * u.solMass,
planet_a=30.27762143269065 * u.au,
planet_e=0.012971767987242259 * u.dimensionless_unscaled,
planet_inc=0 * u.rad,
planet_omega=0 * u.rad,
planet_Omega=0 * u.rad,
planet_f=0 * u.rad,
):
# Set up a Sun-Neptune system.
sim = rebound.Simulation()
sim.add(m=sun_mass.value)
sim.add(
m=planet_mass.value,
a=planet_a.value,
e=planet_e.value,
inc=planet_inc.value,
omega=planet_omega.value,
Omega=planet_Omega.value,
f=planet_f.value,
)
sim.integrator = "whckl"
sim.ri_whfast.safe_mode = 0
sim.dt = 0.01 * sim.particles[1].P
sim.move_to_com()
return sim
sim = setup()
The Adiabatic Regime¶
The adiabatic regime for changes to the energy, eccentricity, and inclination of a binary system due to a stellar flyby is generally defined when $q \gg a$, $v_\mathrm{inf} \sim v_\mathrm{planet}$, and for similarly massive objects, i.e. $m_1 \sim m_2 \sim m_3$. These assumptions are made in the perturbative analysis for coming up with analytic expressions (see the grey regime on the right side of the figure below), but comparisons to n-body results show that these boundaries can be pushed a little.
In [4]:
Copied!
N = int(1e5)
qbya = np.logspace(-1, 2, N)
vinfbyv = np.logspace(-1, 2, N)
plt.rcParams.update({"font.size": 15})
fig, ax = plt.subplots(1, 1, figsize=(6, 6))
ax.axvline(1, c="k", ls="-", lw=2)
parabolic = 1.0 / np.sqrt(qbya)
ax.loglog(qbya, parabolic, "C0", lw=2)
ax.fill_between(qbya, parabolic, color="C0", alpha=0.3)
hyperbolic = 1.0 / np.sqrt(qbya)
ax.fill_between(qbya, hyperbolic, 100, color="C1", alpha=0.3)
adiabatic = (
np.sqrt(2.0)
* (qbya[qbya >= 2 ** (2 / 3)])
* np.sqrt(0.25 - (qbya[qbya >= 2 ** (2 / 3)]) ** (-3))
)
ax.loglog(qbya[qbya >= 2 ** (2 / 3)], adiabatic, "C2--", lw=2)
ax.fill_between(qbya[qbya >= 2 ** (2 / 3)], adiabatic, color="C2", alpha=0.5)
ax.text(2, 20, "Hyperbolic, Impulsive", {"size": 12})
ax.text(9, 1.5, "Hyperbolic, Adiabatic", {"size": 12})
ax.text(2, 0.17, "Near-Parabolic, Adiabatic", {"size": 12})
ax.text(1.085, 0.5, "Close", {"size": 12})
ax.set_xlabel(r"$q/a$")
ax.set_ylabel(r"$v_\infty/v$")
ax.set_xlim([0.8, 1e2])
ax.set_ylim([1e-1, 1e2])
fig.patch.set_facecolor("#E0E0E0")
filepath = images / "adiabatic-regime.png"

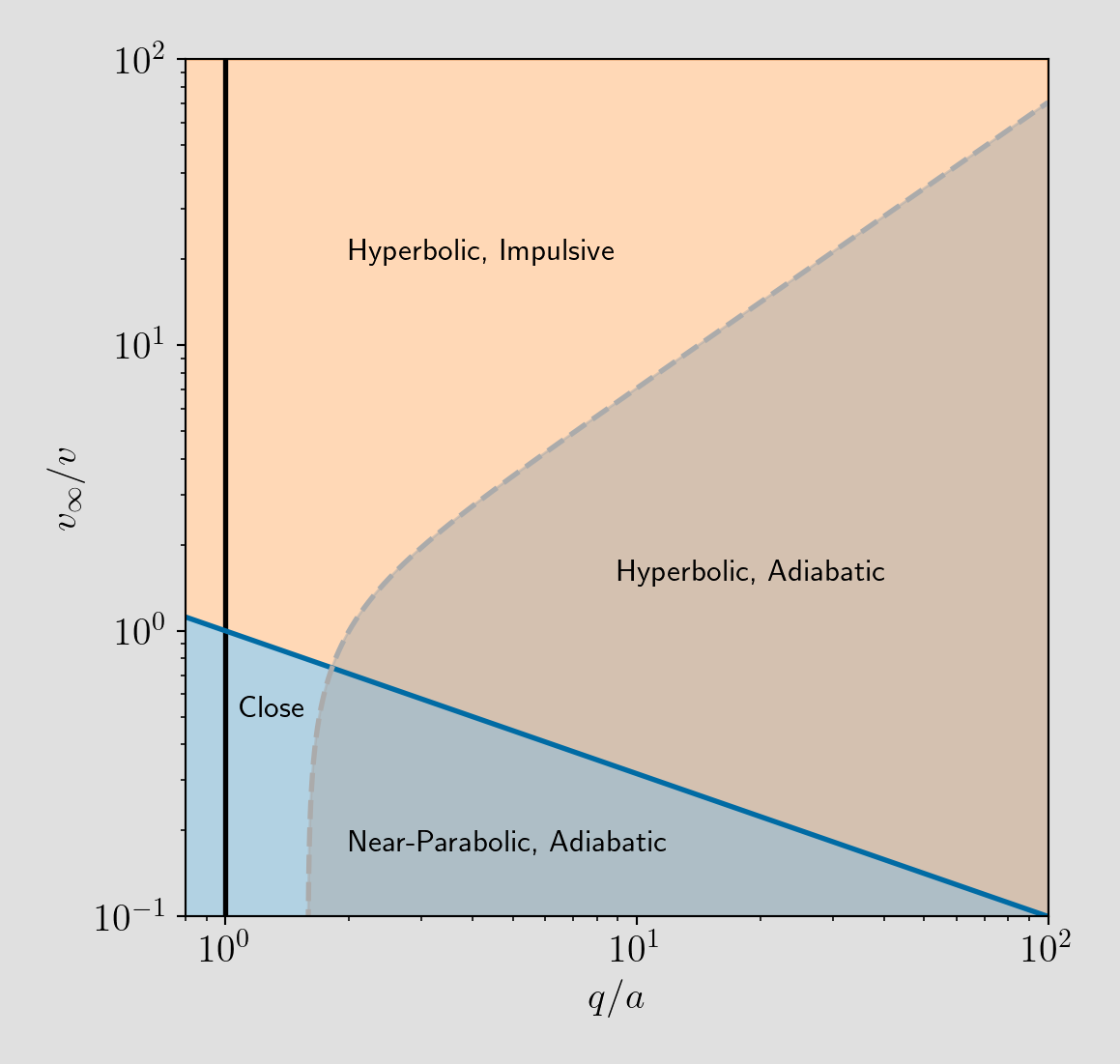

alt_text = "A parameter regime plot showing the locations of adiabatic vs impulsive and parabolic vs hyperbolic flybys."
save_and_display_figure(filepath, alt_text)
N = int(1e5)
qbya = np.logspace(-1, 2, N)
vinfbyv = np.logspace(-1, 2, N)
plt.rcParams.update({"font.size": 15})
fig, ax = plt.subplots(1, 1, figsize=(6, 6))
ax.axvline(1, c="k", ls="-", lw=2)
parabolic = 1.0 / np.sqrt(qbya)
ax.loglog(qbya, parabolic, "C0", lw=2)
ax.fill_between(qbya, parabolic, color="C0", alpha=0.3)
hyperbolic = 1.0 / np.sqrt(qbya)
ax.fill_between(qbya, hyperbolic, 100, color="C1", alpha=0.3)
adiabatic = (
np.sqrt(2.0)
* (qbya[qbya >= 2 ** (2 / 3)])
* np.sqrt(0.25 - (qbya[qbya >= 2 ** (2 / 3)]) ** (-3))
)
ax.loglog(qbya[qbya >= 2 ** (2 / 3)], adiabatic, "C2--", lw=2)
ax.fill_between(qbya[qbya >= 2 ** (2 / 3)], adiabatic, color="C2", alpha=0.5)
ax.text(2, 20, "Hyperbolic, Impulsive", {"size": 12})
ax.text(9, 1.5, "Hyperbolic, Adiabatic", {"size": 12})
ax.text(2, 0.17, "Near-Parabolic, Adiabatic", {"size": 12})
ax.text(1.085, 0.5, "Close", {"size": 12})
ax.set_xlabel(r"$q/a$")
ax.set_ylabel(r"$v_\infty/v$")
ax.set_xlim([0.8, 1e2])
ax.set_ylim([1e-1, 1e2])
fig.patch.set_facecolor("#E0E0E0")
filepath = images / "adiabatic-regime.png"
alt_text = "A parameter regime plot showing the locations of adiabatic vs impulsive and parabolic vs hyperbolic flybys."
save_and_display_figure(filepath, alt_text)
Out[4]:
Analytic estimates for changes to the energy, eccentricity, and inclination of a binary system from a stellar flyby depend nonlinearly on the relationships between the perihelion and relative velocity of the flyby star. This notebook compares analytical estimates from the literature to n-body integrations. As is shown below, the analytical estimates match n-body results really well within the specified regimes, and in some cases beyond the regimes. Even though most of the analytical theory has been developed for stellar mass binary systems and stellar flybys, the match between theory and numerical results remains suprisingly close even for planetary systems.
Implementation Details¶
We found that when probing changes to a system from an adiabatic flyby, it is important to begin with the star around $r_\mathrm{max} \sim \mathcal{O}(10^5\,\mathrm{AU})$ away from the Sun.
Investigate the effects from a flyby with respect to perihelion.¶
The effects of a stellar flyby on star-planet energy depends exponentially on the perihelion distance. There is a power-law dependence on the effect of a stellar flyby on the eccentricity of a star-planet system. We can investigate this by running a couple hundred flyby scenarios while systematically changing the perihelion distance. If each time we have a different, randomly oriented flyby, we can also obtain a statistical idea of how much the orientation matters.
The following takes about 20 seconds to run on an M2 Pro Macbook Pro
In [5]:
Copied!
Nflybys = 500
star_qs = np.logspace(-1, 4, Nflybys) * planet_a
qda = star_qs / planet_a
star_bs = airball.tools.vinf_and_q_to_b(
mu=airball.tools.gravitational_mu(sim, star), star_q=star_qs, star_v=star.v
)
stars = airball.Stars(m=star.m, b=star_bs, v=star.v, seed=0)
RMAX = 4.5e5 * u.au
sims = [setup() for i in range(Nflybys)]
sim_results = airball.hybrid_flybys(sims, stars, rmax=RMAX, overwrite=False)
est_dE = np.abs(airball.analytic.relative_energy_change(setup(), stars))
est_de = np.abs(
airball.analytic.eccentricity_change_adiabatic_estimate(setup(), stars, rmax=RMAX)
)
est_di = np.abs(airball.analytic.inclination_change_adiabatic_estimate(setup(), stars))
dE, de, di = np.zeros(Nflybys), np.zeros(Nflybys), np.zeros(Nflybys)
nsteps = np.zeros(Nflybys)
for i in range(Nflybys):
de[i] = np.abs(sim_results[i].particles[1].e - sims[i].particles[1].e)
di[i] = np.abs(np.sin(sim_results[i].particles[1].inc - sims[i].particles[1].inc))
dE[i] = np.abs((sim_results[i].energy() - sims[i].energy()) / sims[i].energy())
nsteps[i] = sim_results[i].steps_done
Nflybys = 500
star_qs = np.logspace(-1, 4, Nflybys) * planet_a
qda = star_qs / planet_a
star_bs = airball.tools.vinf_and_q_to_b(
mu=airball.tools.gravitational_mu(sim, star), star_q=star_qs, star_v=star.v
)
stars = airball.Stars(m=star.m, b=star_bs, v=star.v, seed=0)
RMAX = 4.5e5 * u.au
sims = [setup() for i in range(Nflybys)]
sim_results = airball.hybrid_flybys(sims, stars, rmax=RMAX, overwrite=False)
est_dE = np.abs(airball.analytic.relative_energy_change(setup(), stars))
est_de = np.abs(
airball.analytic.eccentricity_change_adiabatic_estimate(setup(), stars, rmax=RMAX)
)
est_di = np.abs(airball.analytic.inclination_change_adiabatic_estimate(setup(), stars))
dE, de, di = np.zeros(Nflybys), np.zeros(Nflybys), np.zeros(Nflybys)
nsteps = np.zeros(Nflybys)
for i in range(Nflybys):
de[i] = np.abs(sim_results[i].particles[1].e - sims[i].particles[1].e)
di[i] = np.abs(np.sin(sim_results[i].particles[1].inc - sims[i].particles[1].inc))
dE[i] = np.abs((sim_results[i].energy() - sims[i].energy()) / sims[i].energy())
nsteps[i] = sim_results[i].steps_done
In [6]:
Copied!
n = 25
plt.rcParams.update({"font.size": 15})
fig, ax = plt.subplots(3, 1, figsize=(10, 10), sharex=True)
ax[0].set_title(
"Relative changes to a Star-Planet system due to a flyby", font={"size": 15}
)
ax[0].loglog(qda, dE, "C0.", label=r"Energy $|\Delta E/E|$")
ax[0].loglog(ma(qda, n), ma(dE, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[0].loglog(
ma(qda, n), ma(est_dE, n, "nan"), "k-", label=r"Analytic Estimate $|\Delta E/E|$"
)
ax[0].loglog(qda, 2.0 ** (-53.0) * np.sqrt(nsteps), "k--", lw=0.75)
ax[0].axhline(y=1, ls=":", c="k")
ax[0].set_ylabel(r"$|\Delta E/E|$")
ax[0].set_xlim([np.min(qda) * 0.9, np.max(qda) * 1.1])
ax[0].set_ylim([np.min(dE) / 2, np.max(dE) * 2])
ax[1].loglog(qda, de, "C0.", label=r"Eccentricity $|\Delta e|$")
ax[1].loglog(ma(qda, n), ma(de, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[1].loglog(
ma(qda, n), ma(est_de, n, "nan"), "k-", label=r"Analytic Estimate $|\Delta e|$"
)
ax[1].set_ylabel(r"$|\Delta e|$")
ax[2].loglog(qda, di, "C0.", label=r"Inclination $|\sin(\Delta i)|$")
ax[2].loglog(ma(qda, n), ma(di, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[2].loglog(
ma(qda, n),
ma(est_di, n, "nan"),
"k-",
label=r"Analytic Estimate $|\sin(\Delta i)|$",
)
ax[2].set_ylabel(r"$|\sin(\Delta i)|$")
ax[2].set_xlabel(
r"Perihelion/Planet Semi-major Axis, $q_\mathrm{star}/a_\mathrm{planet}$"
)
for i in range(3):
ax[i].axvline(3, c="k", alpha=0.3)
ax[i].legend(prop={"size": 11})
ax[i].xaxis.grid(True, which="both", alpha=0.4)
ax[i].yaxis.grid(True, which="both", alpha=0.4)
plt.subplots_adjust(hspace=0.0)
fig.patch.set_facecolor("#E0E0E0")
filepath = images / "perihelion-comparison.png"

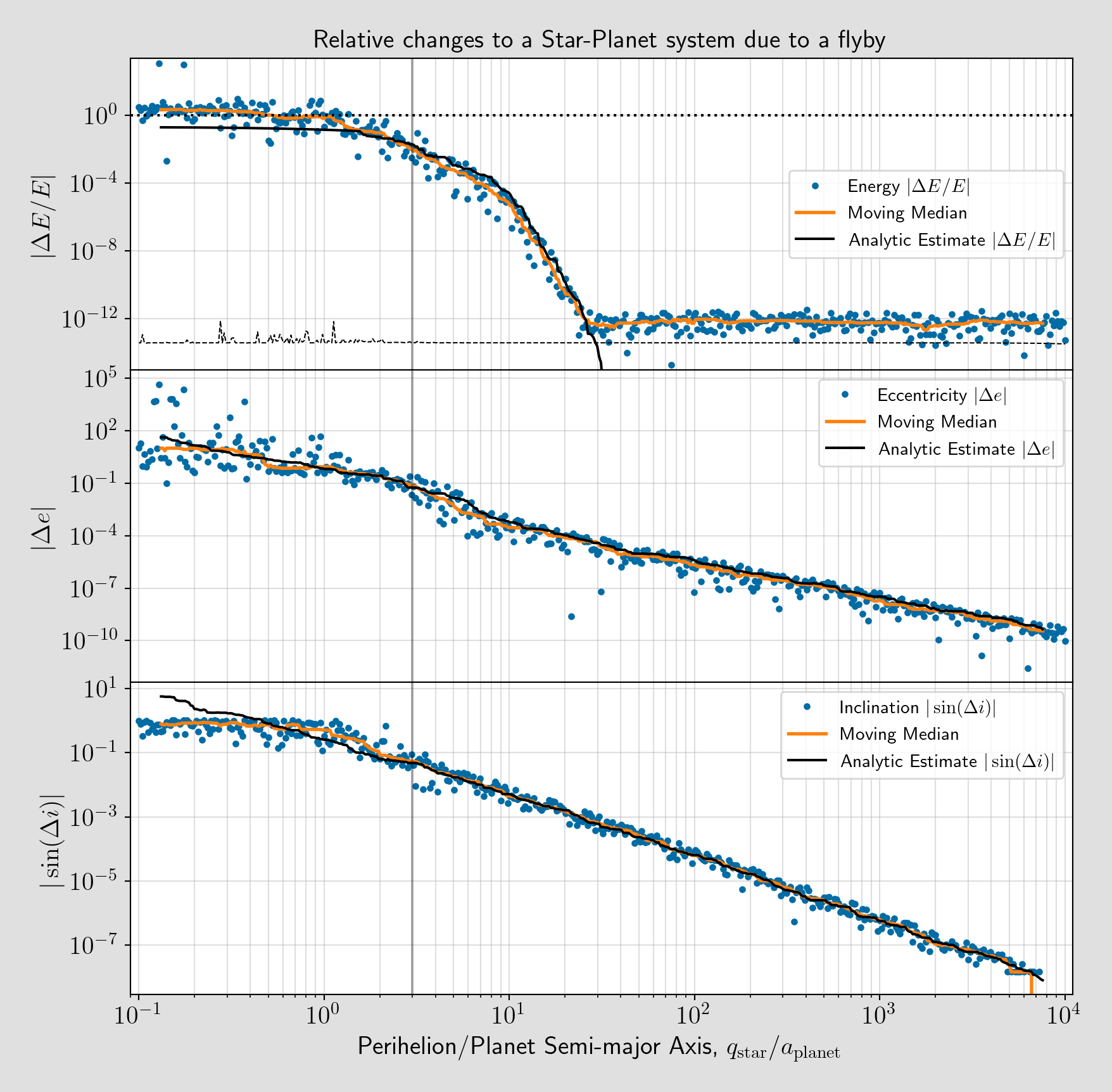

alt_text = "A three panel figure showing the change in energy, eccentricity, and inclination due to a stellar flyby with respect to the perihelion of the flyby."
save_and_display_figure(filepath, alt_text, width=900)
n = 25
plt.rcParams.update({"font.size": 15})
fig, ax = plt.subplots(3, 1, figsize=(10, 10), sharex=True)
ax[0].set_title(
"Relative changes to a Star-Planet system due to a flyby", font={"size": 15}
)
ax[0].loglog(qda, dE, "C0.", label=r"Energy $|\Delta E/E|$")
ax[0].loglog(ma(qda, n), ma(dE, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[0].loglog(
ma(qda, n), ma(est_dE, n, "nan"), "k-", label=r"Analytic Estimate $|\Delta E/E|$"
)
ax[0].loglog(qda, 2.0 ** (-53.0) * np.sqrt(nsteps), "k--", lw=0.75)
ax[0].axhline(y=1, ls=":", c="k")
ax[0].set_ylabel(r"$|\Delta E/E|$")
ax[0].set_xlim([np.min(qda) * 0.9, np.max(qda) * 1.1])
ax[0].set_ylim([np.min(dE) / 2, np.max(dE) * 2])
ax[1].loglog(qda, de, "C0.", label=r"Eccentricity $|\Delta e|$")
ax[1].loglog(ma(qda, n), ma(de, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[1].loglog(
ma(qda, n), ma(est_de, n, "nan"), "k-", label=r"Analytic Estimate $|\Delta e|$"
)
ax[1].set_ylabel(r"$|\Delta e|$")
ax[2].loglog(qda, di, "C0.", label=r"Inclination $|\sin(\Delta i)|$")
ax[2].loglog(ma(qda, n), ma(di, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[2].loglog(
ma(qda, n),
ma(est_di, n, "nan"),
"k-",
label=r"Analytic Estimate $|\sin(\Delta i)|$",
)
ax[2].set_ylabel(r"$|\sin(\Delta i)|$")
ax[2].set_xlabel(
r"Perihelion/Planet Semi-major Axis, $q_\mathrm{star}/a_\mathrm{planet}$"
)
for i in range(3):
ax[i].axvline(3, c="k", alpha=0.3)
ax[i].legend(prop={"size": 11})
ax[i].xaxis.grid(True, which="both", alpha=0.4)
ax[i].yaxis.grid(True, which="both", alpha=0.4)
plt.subplots_adjust(hspace=0.0)
fig.patch.set_facecolor("#E0E0E0")
filepath = images / "perihelion-comparison.png"
alt_text = "A three panel figure showing the change in energy, eccentricity, and inclination due to a stellar flyby with respect to the perihelion of the flyby."
save_and_display_figure(filepath, alt_text, width=900)
Out[6]:
We can see that the adiabatic analytical estimates begin to diverge from the numerical values given by airball and rebound when the flyby stars are no longer in the adiabatic regime around $q_\mathrm{star}/a_\mathrm{planet} \sim 3$. Additionally, there is a dramatic divergence when the relative change in energy reaches the numerical floating point precision floor.
StellarEnvironment.maximum_impact_parameter¶
When initializing a Stellar Environment a value can either be given for the maximum_impact_parameter, but if it is not specified it will also be estimated. Physically, there is no maximum distance that limits the gravitational influence of passing stars, but as can be seen in the figure above, there is a numerical limit beyond which changes to the energy of the system are no longer resolved. Thus, when the maximum_impact_parameter is not specified, AIRBALL will estimate its value by finding the distance where the relative energy change from a typical flyby drops below $10^{-16}$.
Investigate the effects from a flyby with respect to velocity.¶
The adiabatic effects of a stellar flyby on a star-planet not only depends on the perihelion distance, but also the velocity. We can investigate this by running a couple hundred flyby scenarios while systematically changing the velocity of the stars at infinity while fixing the perihelion distance. If each time we have a different, randomly oriented flyby, we can also obtain a statistical idea of how much the orientation matters.
The following takes about 10 seconds to run on an M2 Pro Macbook Pro
In [7]:
Copied!
Nflybys = 500
qFrac = 10
planet_v = (sim.particles[1].v * u.au / u.yr2pi).to(
u.km / u.s
) # planet's orbital velocity in km/s
star_vs = np.logspace(
np.log10(planet_v.value * 1e-2), np.log10(planet_v.value * 1e2), Nflybys
)
star_bs = airball.tools.vinf_and_q_to_b(
mu=airball.tools.gravitational_mu(sim, star),
star_q=qFrac * planet_a,
star_v=star_vs,
)
sims = [setup() for i in range(Nflybys)]
stars = airball.Stars(m=star.m, b=star_bs, v=star_vs, seed=1)
vs_v = stars.v / planet_v
RMAX = 1e5 * u.au
sim_results = airball.hybrid_flybys(sims, stars, rmax=RMAX, overwrite=False)
est_dE = np.abs(airball.analytic.relative_energy_change(setup(), stars))
est_de = np.abs(
airball.analytic.eccentricity_change_adiabatic_estimate(setup(), stars, rmax=RMAX)
)
est_di = np.abs(airball.analytic.inclination_change_adiabatic_estimate(setup(), stars))
dE, de, di = np.zeros(Nflybys), np.zeros(Nflybys), np.zeros(Nflybys)
nsteps = np.zeros(Nflybys)
for i in range(Nflybys):
de[i] = np.abs(sim_results[i].particles[1].e - sims[i].particles[1].e)
di[i] = np.abs(np.sin(sim_results[i].particles[1].inc - sims[i].particles[1].inc))
dE[i] = np.abs((sim_results[i].energy() - sims[i].energy()) / sims[i].energy())
nsteps[i] = sim_results[i].steps_done
Nflybys = 500
qFrac = 10
planet_v = (sim.particles[1].v * u.au / u.yr2pi).to(
u.km / u.s
) # planet's orbital velocity in km/s
star_vs = np.logspace(
np.log10(planet_v.value * 1e-2), np.log10(planet_v.value * 1e2), Nflybys
)
star_bs = airball.tools.vinf_and_q_to_b(
mu=airball.tools.gravitational_mu(sim, star),
star_q=qFrac * planet_a,
star_v=star_vs,
)
sims = [setup() for i in range(Nflybys)]
stars = airball.Stars(m=star.m, b=star_bs, v=star_vs, seed=1)
vs_v = stars.v / planet_v
RMAX = 1e5 * u.au
sim_results = airball.hybrid_flybys(sims, stars, rmax=RMAX, overwrite=False)
est_dE = np.abs(airball.analytic.relative_energy_change(setup(), stars))
est_de = np.abs(
airball.analytic.eccentricity_change_adiabatic_estimate(setup(), stars, rmax=RMAX)
)
est_di = np.abs(airball.analytic.inclination_change_adiabatic_estimate(setup(), stars))
dE, de, di = np.zeros(Nflybys), np.zeros(Nflybys), np.zeros(Nflybys)
nsteps = np.zeros(Nflybys)
for i in range(Nflybys):
de[i] = np.abs(sim_results[i].particles[1].e - sims[i].particles[1].e)
di[i] = np.abs(np.sin(sim_results[i].particles[1].inc - sims[i].particles[1].inc))
dE[i] = np.abs((sim_results[i].energy() - sims[i].energy()) / sims[i].energy())
nsteps[i] = sim_results[i].steps_done
In [8]:
Copied!
floor = 2.0 ** (-53.0) * np.sqrt(nsteps)
n = 25
plt.rcParams.update({"font.size": 15})
fig, ax = plt.subplots(3, 1, figsize=(10, 8), sharex=True)
ax[0].set_title(
rf"Relative changes to a Star-Planet system due to a flyby, $q/a={{{qFrac}}}$",
font={"size": 15},
)
ax[0].loglog(vs_v, dE, "C0.", alpha=0.5, label=r"Energy $|\Delta E/E|$")
ax[0].loglog(ma(vs_v, n=n), ma(dE, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[0].loglog(
ma(vs_v, n),
ma(est_dE, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\Delta E/E|$",
)
ax[0].loglog(vs_v, floor, "k--", lw=0.75)
ax[0].axhline(y=1, ls=":", c="k")
ax[0].set_ylabel(r"$|\Delta E/E|$")
ax[0].set_xlim([np.min(vs_v) * 0.9, np.max(vs_v) * 1.1])
ax[0].set_ylim([np.min([dE, floor]) / 2, np.max(dE) * 2])
ax[1].loglog(vs_v, de, "C0.", label=r"Eccentricity $|\Delta e|$")
ax[1].loglog(ma(vs_v, n), ma(de, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[1].loglog(
ma(vs_v, n),
ma(est_de, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\Delta e|$",
)
ax[1].set_ylabel(r"$|\Delta e|$")
ax[2].loglog(vs_v, di, "C0.", label=r"Inclination $|\sin(\Delta i)|$")
ax[2].loglog(ma(vs_v, n), ma(di, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[2].loglog(
ma(vs_v, n),
ma(est_di, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\sin(\Delta i)|$",
)
ax[2].set_ylabel(r"$|\sin(\Delta i)|$")
ax[2].set_xlabel(r"$v_\mathrm{star}/v_\mathrm{planet}$")
for i in range(3):
ax[i].axvline(10, c="k", alpha=0.3)
ax[i].legend(prop={"size": 11})
ax[i].xaxis.grid(True, which="both", alpha=0.4)
ax[i].yaxis.grid(True, which="both", alpha=0.4)
plt.subplots_adjust(hspace=0.0)
fig.patch.set_facecolor("#E0E0E0")

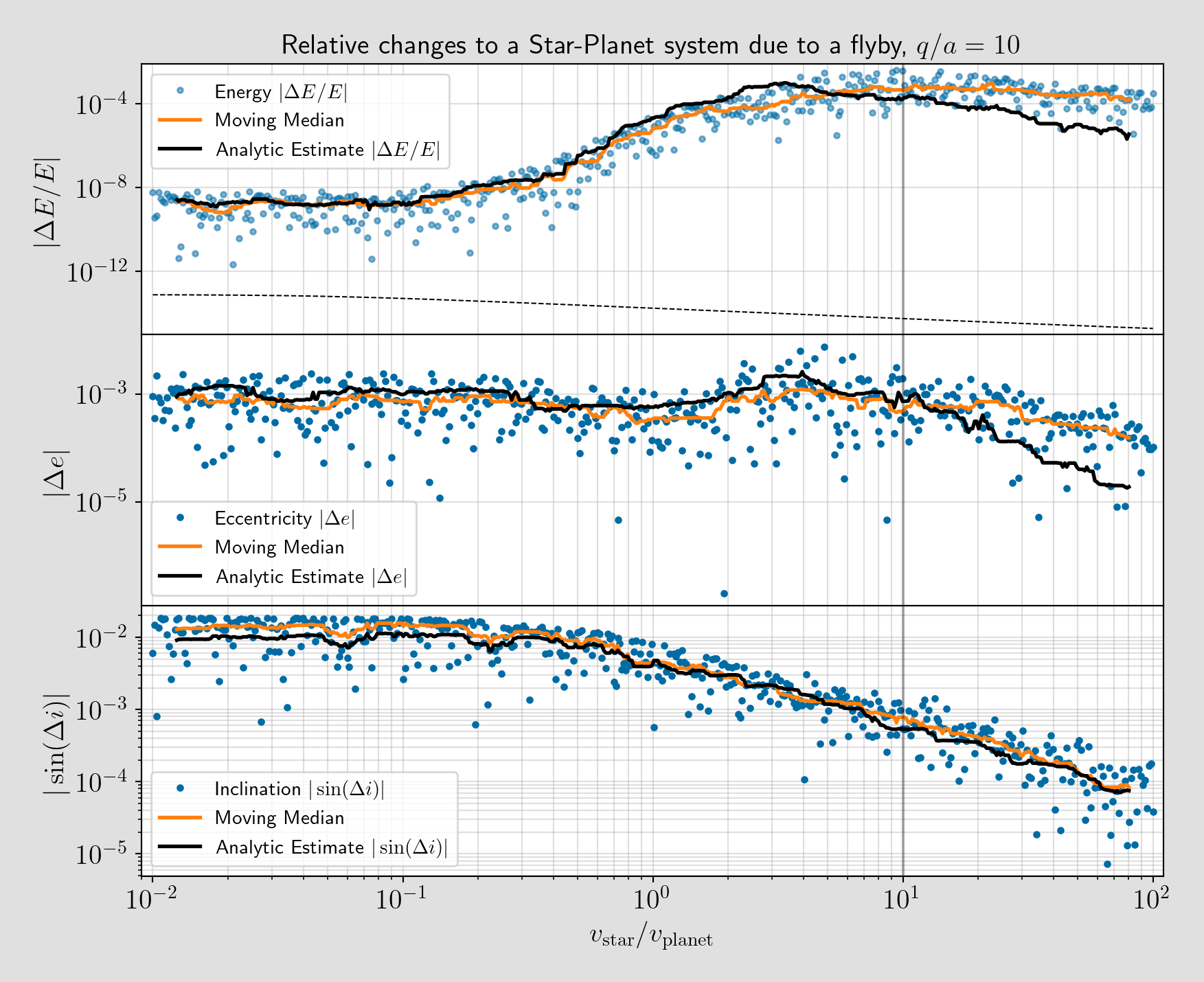

filepath = images / "velocity-comparison.png"
alt_text = "A three panel figure showing the change in energy, eccentricity, and inclination due to a stellar flyby with respect to the velocity of the flyby."
save_and_display_figure(filepath, alt_text, width=900)
floor = 2.0 ** (-53.0) * np.sqrt(nsteps)
n = 25
plt.rcParams.update({"font.size": 15})
fig, ax = plt.subplots(3, 1, figsize=(10, 8), sharex=True)
ax[0].set_title(
rf"Relative changes to a Star-Planet system due to a flyby, $q/a={{{qFrac}}}$",
font={"size": 15},
)
ax[0].loglog(vs_v, dE, "C0.", alpha=0.5, label=r"Energy $|\Delta E/E|$")
ax[0].loglog(ma(vs_v, n=n), ma(dE, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[0].loglog(
ma(vs_v, n),
ma(est_dE, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\Delta E/E|$",
)
ax[0].loglog(vs_v, floor, "k--", lw=0.75)
ax[0].axhline(y=1, ls=":", c="k")
ax[0].set_ylabel(r"$|\Delta E/E|$")
ax[0].set_xlim([np.min(vs_v) * 0.9, np.max(vs_v) * 1.1])
ax[0].set_ylim([np.min([dE, floor]) / 2, np.max(dE) * 2])
ax[1].loglog(vs_v, de, "C0.", label=r"Eccentricity $|\Delta e|$")
ax[1].loglog(ma(vs_v, n), ma(de, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[1].loglog(
ma(vs_v, n),
ma(est_de, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\Delta e|$",
)
ax[1].set_ylabel(r"$|\Delta e|$")
ax[2].loglog(vs_v, di, "C0.", label=r"Inclination $|\sin(\Delta i)|$")
ax[2].loglog(ma(vs_v, n), ma(di, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[2].loglog(
ma(vs_v, n),
ma(est_di, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\sin(\Delta i)|$",
)
ax[2].set_ylabel(r"$|\sin(\Delta i)|$")
ax[2].set_xlabel(r"$v_\mathrm{star}/v_\mathrm{planet}$")
for i in range(3):
ax[i].axvline(10, c="k", alpha=0.3)
ax[i].legend(prop={"size": 11})
ax[i].xaxis.grid(True, which="both", alpha=0.4)
ax[i].yaxis.grid(True, which="both", alpha=0.4)
plt.subplots_adjust(hspace=0.0)
fig.patch.set_facecolor("#E0E0E0")
filepath = images / "velocity-comparison.png"
alt_text = "A three panel figure showing the change in energy, eccentricity, and inclination due to a stellar flyby with respect to the velocity of the flyby."
save_and_display_figure(filepath, alt_text, width=900)
Out[8]:
We again can see that the adiabatic analytical estimates begin to diverge from the numerical values given when the flyby stars are no longer in the adiabatic regime around $v_\mathrm{star}/v_\mathrm{planet} \sim 10$.
Investigate the effects from a flyby with respect to mass.¶
The adiabatic effects of a stellar flyby on a star-planet not only depends on the perihelion distance and the velocity, but also on the mass of the star. We can investigate this by running a couple hundred flyby scenarios while systematically changing the mass of the stars from jupiter mass to very massive for a fixed perihelion distance. If each time we have a different, randomly oriented flyby with a random velocity, we can also obtain a statistical idea of how much the orientation matters.
The following takes about 10 seconds to run on an M2 Pro Macbook Pro
In [9]:
Copied!
Nflybys = 500
qs = 500 * np.ones(Nflybys) << u.au
vs = (
maxwell.rvs(
scale=airball.tools.maxwell_boltzmann_scale_from_dispersion(5), size=Nflybys
)
<< u.km / u.s
)
imf = airball.IMF(1e-3, 1e2, mass_function=airball.imf.loguniform())
ms = imf.random_mass(Nflybys)
mu = airball.tools.gravitational_mu(sim, star_mass=ms)
bs = airball.tools.vinf_and_q_to_b(mu, qs, vs)
stars = airball.Stars(m=ms, b=bs, v=vs, seed=2)
stars.sort("m")
masses = stars.m
RMAX = 4.5e5 * u.au
sim_results = airball.hybrid_flybys(
sims, stars, hybrid=True, rmax=RMAX, overwrite=False
)
est_dE = np.abs(airball.analytic.relative_energy_change(setup(), stars))
est_de = np.abs(
airball.analytic.eccentricity_change_adiabatic_estimate(setup(), stars, rmax=RMAX)
)
est_di = np.abs(airball.analytic.inclination_change_adiabatic_estimate(setup(), stars))
dE, de, di = np.zeros(Nflybys), np.zeros(Nflybys), np.zeros(Nflybys)
nsteps = np.zeros(Nflybys)
for i in range(Nflybys):
de[i] = np.abs(sim_results[i].particles[1].e - sims[i].particles[1].e)
di[i] = np.abs(np.sin(sim_results[i].particles[1].inc - sims[i].particles[1].inc))
dE[i] = np.abs((sim_results[i].energy() - sims[i].energy()) / sims[i].energy())
nsteps[i] = sim_results[i].steps_done
Nflybys = 500
qs = 500 * np.ones(Nflybys) << u.au
vs = (
maxwell.rvs(
scale=airball.tools.maxwell_boltzmann_scale_from_dispersion(5), size=Nflybys
)
<< u.km / u.s
)
imf = airball.IMF(1e-3, 1e2, mass_function=airball.imf.loguniform())
ms = imf.random_mass(Nflybys)
mu = airball.tools.gravitational_mu(sim, star_mass=ms)
bs = airball.tools.vinf_and_q_to_b(mu, qs, vs)
stars = airball.Stars(m=ms, b=bs, v=vs, seed=2)
stars.sort("m")
masses = stars.m
RMAX = 4.5e5 * u.au
sim_results = airball.hybrid_flybys(
sims, stars, hybrid=True, rmax=RMAX, overwrite=False
)
est_dE = np.abs(airball.analytic.relative_energy_change(setup(), stars))
est_de = np.abs(
airball.analytic.eccentricity_change_adiabatic_estimate(setup(), stars, rmax=RMAX)
)
est_di = np.abs(airball.analytic.inclination_change_adiabatic_estimate(setup(), stars))
dE, de, di = np.zeros(Nflybys), np.zeros(Nflybys), np.zeros(Nflybys)
nsteps = np.zeros(Nflybys)
for i in range(Nflybys):
de[i] = np.abs(sim_results[i].particles[1].e - sims[i].particles[1].e)
di[i] = np.abs(np.sin(sim_results[i].particles[1].inc - sims[i].particles[1].inc))
dE[i] = np.abs((sim_results[i].energy() - sims[i].energy()) / sims[i].energy())
nsteps[i] = sim_results[i].steps_done
In [10]:
Copied!
floor = 2.0 ** (-53.0) * np.sqrt(nsteps)
n = 25
plt.rcParams.update({"font.size": 15})
fig, ax = plt.subplots(3, 1, figsize=(10, 8), sharex=True)
ax[0].set_title(
rf"Relative changes to a Star-Planet system due to a flyby, $q/a={{{np.mean(qs / planet_a):1.1f}}}$",
font={"size": 15},
)
ax[0].loglog(masses, dE, "C0.", alpha=0.5, label=r"Energy $|\Delta E/E|$")
ax[0].loglog(ma(masses, n), ma(dE, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[0].loglog(
ma(masses, n),
ma(est_dE, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\Delta E/E|$",
)
ax[0].loglog(masses, floor, "k--", lw=0.75)
ax[0].axhline(y=1, ls=":", c="k")
ax[0].set_ylabel(r"$|\Delta E/E|$")
ax[0].set_ylim([np.min([dE, floor]) / 2, np.max(dE) * 2])
ax[1].loglog(masses, de, "C0.", label=r"Eccentricity $|\Delta e|$")
ax[1].loglog(ma(masses, n), ma(de, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[1].loglog(
ma(masses, n),
ma(est_de, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\Delta e|$",
)
ax[1].set_ylabel(r"$|\Delta e|$")
ax[2].loglog(masses, di, "C0.", label=r"Inclination $|\sin(\Delta i)|$")
ax[2].loglog(ma(masses, n), ma(di, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[2].loglog(
ma(masses, n),
ma(est_di, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\sin(\Delta i)|$",
)
ax[2].set_ylabel(r"$|\sin(\Delta i)|$")
ax[2].set_xlabel(r"Stellar Mass [$M_\odot$]")
for i in range(3):
ax[i].legend(prop={"size": 11})
ax[i].xaxis.grid(True, which="both", alpha=0.4)
ax[i].yaxis.grid(True, which="both", alpha=0.4)
plt.subplots_adjust(hspace=0.0)
fig.patch.set_facecolor("#E0E0E0")
filepath = images / "mass-comparison.png"

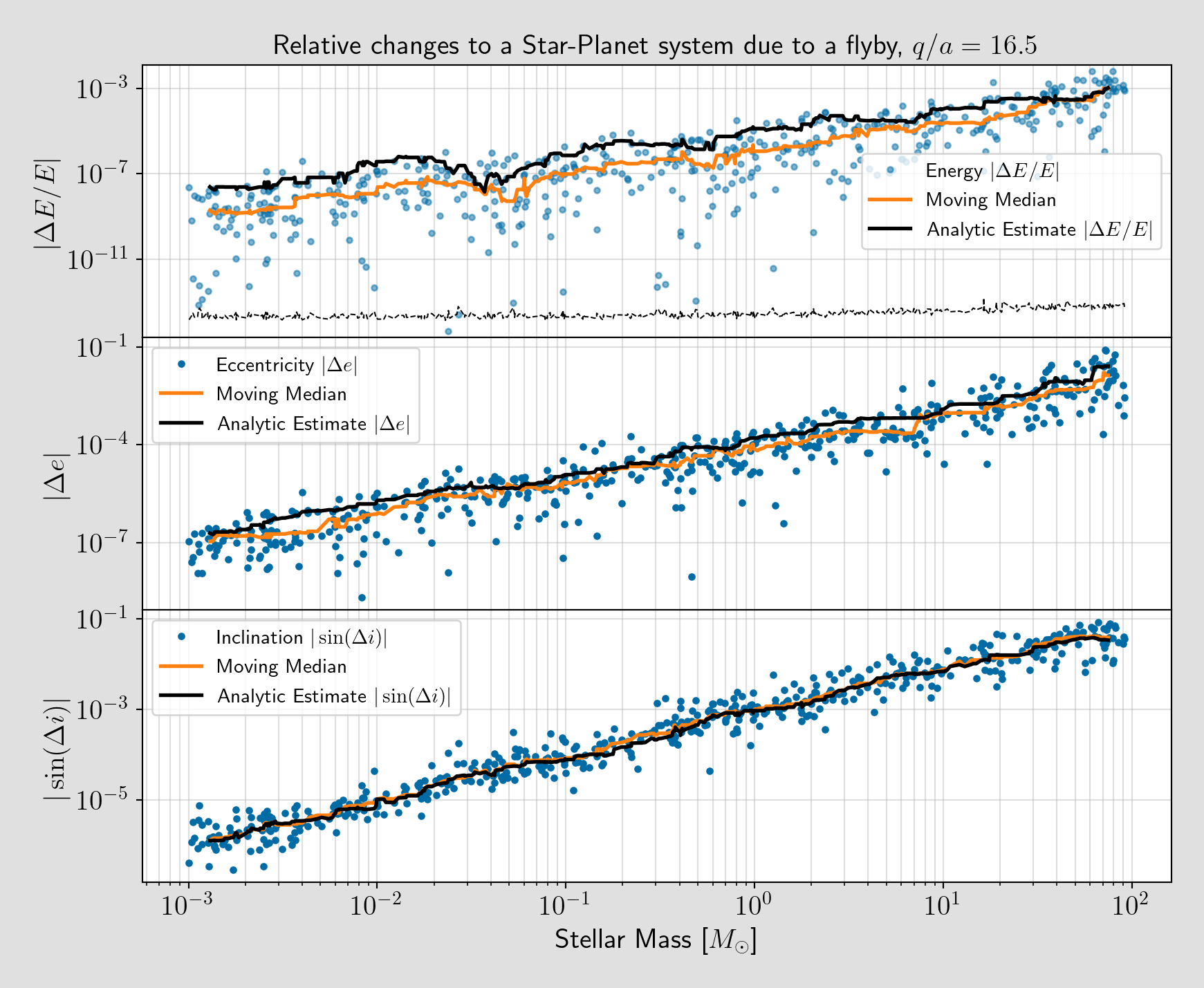

alt_text = "A three panel figure showing the change in energy, eccentricity, and inclination due to a stellar flyby with respect to the mass of the flyby."
save_and_display_figure(filepath, alt_text, width=900)
floor = 2.0 ** (-53.0) * np.sqrt(nsteps)
n = 25
plt.rcParams.update({"font.size": 15})
fig, ax = plt.subplots(3, 1, figsize=(10, 8), sharex=True)
ax[0].set_title(
rf"Relative changes to a Star-Planet system due to a flyby, $q/a={{{np.mean(qs / planet_a):1.1f}}}$",
font={"size": 15},
)
ax[0].loglog(masses, dE, "C0.", alpha=0.5, label=r"Energy $|\Delta E/E|$")
ax[0].loglog(ma(masses, n), ma(dE, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[0].loglog(
ma(masses, n),
ma(est_dE, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\Delta E/E|$",
)
ax[0].loglog(masses, floor, "k--", lw=0.75)
ax[0].axhline(y=1, ls=":", c="k")
ax[0].set_ylabel(r"$|\Delta E/E|$")
ax[0].set_ylim([np.min([dE, floor]) / 2, np.max(dE) * 2])
ax[1].loglog(masses, de, "C0.", label=r"Eccentricity $|\Delta e|$")
ax[1].loglog(ma(masses, n), ma(de, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[1].loglog(
ma(masses, n),
ma(est_de, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\Delta e|$",
)
ax[1].set_ylabel(r"$|\Delta e|$")
ax[2].loglog(masses, di, "C0.", label=r"Inclination $|\sin(\Delta i)|$")
ax[2].loglog(ma(masses, n), ma(di, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[2].loglog(
ma(masses, n),
ma(est_di, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\sin(\Delta i)|$",
)
ax[2].set_ylabel(r"$|\sin(\Delta i)|$")
ax[2].set_xlabel(r"Stellar Mass [$M_\odot$]")
for i in range(3):
ax[i].legend(prop={"size": 11})
ax[i].xaxis.grid(True, which="both", alpha=0.4)
ax[i].yaxis.grid(True, which="both", alpha=0.4)
plt.subplots_adjust(hspace=0.0)
fig.patch.set_facecolor("#E0E0E0")
filepath = images / "mass-comparison.png"
alt_text = "A three panel figure showing the change in energy, eccentricity, and inclination due to a stellar flyby with respect to the mass of the flyby."
save_and_display_figure(filepath, alt_text, width=900)
Out[10]:
Investigate the effects from a flyby with respect to starting distance.¶
Numerical artifacts can arise if we are not careful when considering an appropriate starting distance for the stellar flyby. We can investigate this by running a couple hundred flyby scenarios while systematically changing the starting distance. Additionally, if each time we have a different, randomly oriented flyby, we can also obtain a statistical idea of how much the orientation matters. It is important to choose an appropriate perihelion for the flyby star. By referring back to the figure showing the relative change in energy with respect to the perihelion distance, we can choose a point where the average numerical relative change in energy just begins to diverge from the average adiabatic analytical estimate at the cusp of the numerical floor. At this inflection point we will be sensitive enough to distinguish between changes in the relative change in energy from the perihelion of the flyby star and the starting distance of the star. After some guess and check, $q_\mathrm{star}/a_\mathrm{planet} \sim 26$ seems to provide the best value to work with.
The following takes about 10 seconds to run on an M2 Pro Macbook Pro
In [11]:
Copied!
Nflybys = 500
sims = [setup() for i in range(Nflybys)]
star_b = airball.tools.vinf_and_q_to_b(
mu=airball.tools.gravitational_mu(sim, star), star_q=26 * planet_a, star_v=star.v
)
stars = airball.Stars(m=star.m, b=star_b, v=star.v, size=Nflybys, seed=3)
rmaxes = np.logspace(3, 6.5, Nflybys) << u.au
sim_results = airball.hybrid_flybys(sims, stars, rmax=rmaxes, overwrite=False)
est_dE = np.abs(airball.analytic.relative_energy_change(setup(), stars))
est_de = np.abs(
airball.analytic.eccentricity_change_adiabatic_estimate(setup(), stars, rmax=rmaxes)
)
est_di = np.abs(airball.analytic.inclination_change_adiabatic_estimate(setup(), stars))
dE, de, di = np.zeros(Nflybys), np.zeros(Nflybys), np.zeros(Nflybys)
nsteps = np.zeros(Nflybys)
for i in range(Nflybys):
de[i] = np.abs(sim_results[i].particles[1].e - sims[i].particles[1].e)
di[i] = np.abs(np.sin(sim_results[i].particles[1].inc - sims[i].particles[1].inc))
dE[i] = np.abs((sim_results[i].energy() - sims[i].energy()) / sims[i].energy())
nsteps[i] = sim_results[i].steps_done
Nflybys = 500
sims = [setup() for i in range(Nflybys)]
star_b = airball.tools.vinf_and_q_to_b(
mu=airball.tools.gravitational_mu(sim, star), star_q=26 * planet_a, star_v=star.v
)
stars = airball.Stars(m=star.m, b=star_b, v=star.v, size=Nflybys, seed=3)
rmaxes = np.logspace(3, 6.5, Nflybys) << u.au
sim_results = airball.hybrid_flybys(sims, stars, rmax=rmaxes, overwrite=False)
est_dE = np.abs(airball.analytic.relative_energy_change(setup(), stars))
est_de = np.abs(
airball.analytic.eccentricity_change_adiabatic_estimate(setup(), stars, rmax=rmaxes)
)
est_di = np.abs(airball.analytic.inclination_change_adiabatic_estimate(setup(), stars))
dE, de, di = np.zeros(Nflybys), np.zeros(Nflybys), np.zeros(Nflybys)
nsteps = np.zeros(Nflybys)
for i in range(Nflybys):
de[i] = np.abs(sim_results[i].particles[1].e - sims[i].particles[1].e)
di[i] = np.abs(np.sin(sim_results[i].particles[1].inc - sims[i].particles[1].inc))
dE[i] = np.abs((sim_results[i].energy() - sims[i].energy()) / sims[i].energy())
nsteps[i] = sim_results[i].steps_done
In [12]:
Copied!
floor = 2.0 ** (-53.0) * np.sqrt(nsteps)
n = 25
plt.rcParams.update({"font.size": 15})
fig, ax = plt.subplots(3, 1, figsize=(10, 10), sharex=True)
ax[0].set_title(
r"Relative changes to a Star-Planet system due to a flyby", font={"size": 15}
)
ax[0].loglog(rmaxes, dE, "C0.", label=r"Energy $|\Delta E/E|$")
ax[0].loglog(ma(rmaxes, n), ma(dE, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[0].loglog(
ma(rmaxes, n),
ma(est_dE, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\Delta E/E|$",
)
ax[0].loglog(rmaxes, floor, "k--", lw=0.75)
ax[0].axhline(y=1, ls=":", c="k")
ax[0].set_ylabel(r"$|\Delta E/E|$")
ax[0].set_xlim([np.min(rmaxes.value) * 0.9, np.max(rmaxes.value) * 1.1])
ax[0].set_ylim([np.min([dE, floor]) / 2, np.max(dE) * 2])
ax[1].loglog(rmaxes, de, "C0.", label=r"Eccentricity $|\Delta e|$")
ax[1].loglog(ma(rmaxes, n), ma(de, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[1].loglog(
ma(rmaxes, n),
ma(est_de, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\Delta e|$",
)
ax[1].set_ylabel(r"$|\Delta e|$")
ax[2].loglog(rmaxes, di, "C0.", label=r"Inclination $|\sin(\Delta i)|$")
ax[2].loglog(ma(rmaxes, n), ma(di, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[2].loglog(
ma(rmaxes, n),
ma(est_di, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\sin(\Delta i)|$",
)
ax[2].set_ylabel(r"$|\sin(\Delta i)|$")
ax[2].set_xlabel(r"$r_{\mathrm{max}}$ [AU]")
for i in range(3):
ax[i].legend(prop={"size": 11})
ax[i].xaxis.grid(True, which="both", alpha=0.4)
ax[i].yaxis.grid(True, which="both", alpha=0.4)
plt.subplots_adjust(hspace=0.0)
fig.patch.set_facecolor("#E0E0E0")
filepath = images / "starting-distance-comparison.png"

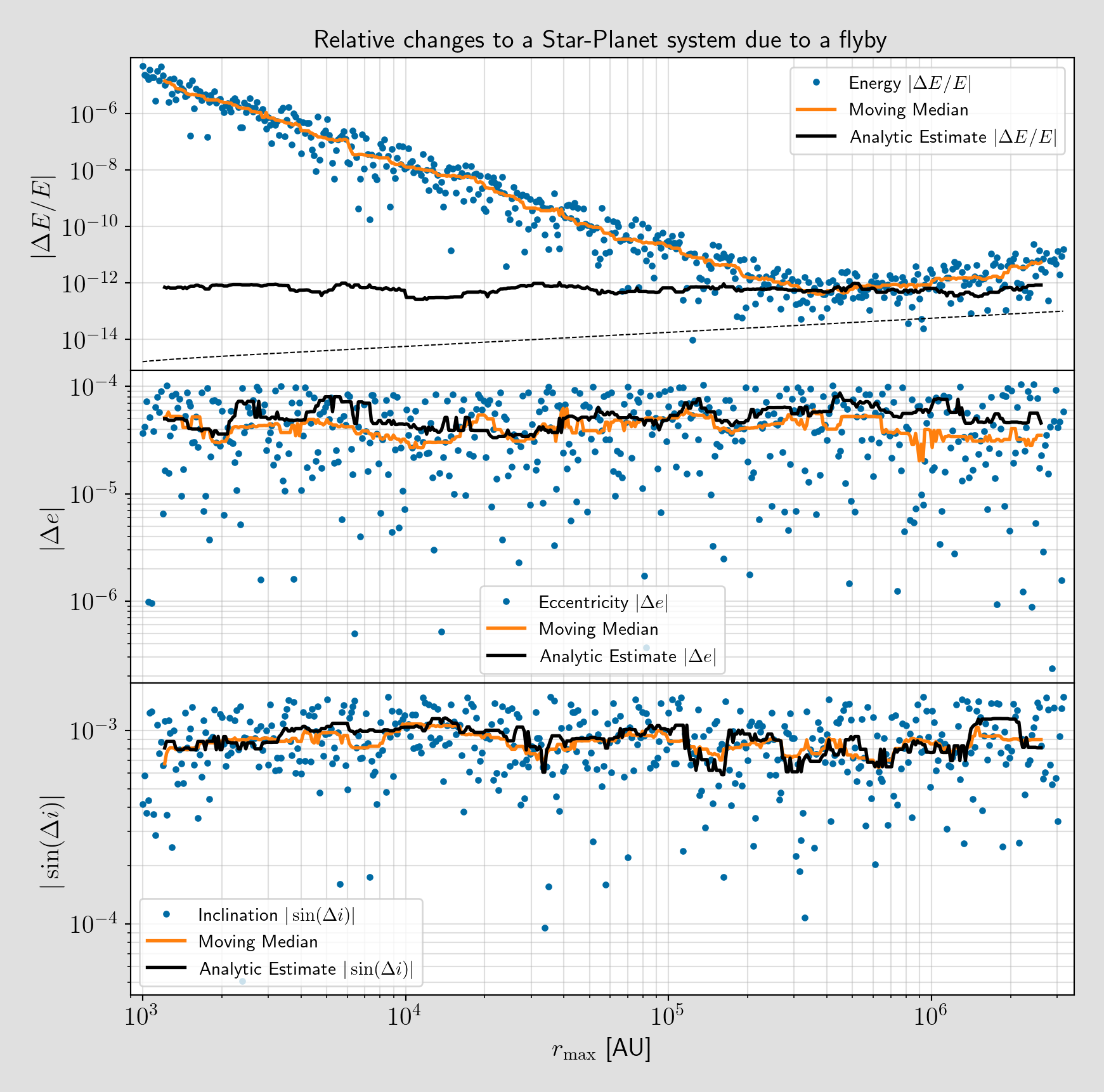

alt_text = "A three panel figure showing the change in energy, eccentricity, and inclination due to a stellar flyby with respect to the starting distance of the flyby."
save_and_display_figure(filepath, alt_text, width=900)
floor = 2.0 ** (-53.0) * np.sqrt(nsteps)
n = 25
plt.rcParams.update({"font.size": 15})
fig, ax = plt.subplots(3, 1, figsize=(10, 10), sharex=True)
ax[0].set_title(
r"Relative changes to a Star-Planet system due to a flyby", font={"size": 15}
)
ax[0].loglog(rmaxes, dE, "C0.", label=r"Energy $|\Delta E/E|$")
ax[0].loglog(ma(rmaxes, n), ma(dE, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[0].loglog(
ma(rmaxes, n),
ma(est_dE, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\Delta E/E|$",
)
ax[0].loglog(rmaxes, floor, "k--", lw=0.75)
ax[0].axhline(y=1, ls=":", c="k")
ax[0].set_ylabel(r"$|\Delta E/E|$")
ax[0].set_xlim([np.min(rmaxes.value) * 0.9, np.max(rmaxes.value) * 1.1])
ax[0].set_ylim([np.min([dE, floor]) / 2, np.max(dE) * 2])
ax[1].loglog(rmaxes, de, "C0.", label=r"Eccentricity $|\Delta e|$")
ax[1].loglog(ma(rmaxes, n), ma(de, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[1].loglog(
ma(rmaxes, n),
ma(est_de, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\Delta e|$",
)
ax[1].set_ylabel(r"$|\Delta e|$")
ax[2].loglog(rmaxes, di, "C0.", label=r"Inclination $|\sin(\Delta i)|$")
ax[2].loglog(ma(rmaxes, n), ma(di, n, "nan"), "C1-", lw=2, label="Moving Median")
ax[2].loglog(
ma(rmaxes, n),
ma(est_di, n, "nan"),
"k-",
lw=2,
label=r"Analytic Estimate $|\sin(\Delta i)|$",
)
ax[2].set_ylabel(r"$|\sin(\Delta i)|$")
ax[2].set_xlabel(r"$r_{\mathrm{max}}$ [AU]")
for i in range(3):
ax[i].legend(prop={"size": 11})
ax[i].xaxis.grid(True, which="both", alpha=0.4)
ax[i].yaxis.grid(True, which="both", alpha=0.4)
plt.subplots_adjust(hspace=0.0)
fig.patch.set_facecolor("#E0E0E0")
filepath = images / "starting-distance-comparison.png"
alt_text = "A three panel figure showing the change in energy, eccentricity, and inclination due to a stellar flyby with respect to the starting distance of the flyby."
save_and_display_figure(filepath, alt_text, width=900)
Out[12]:
Based on these results, we suggest a starting distance for the stellar flyby to be around $10^5$ to $10^6$ AU or similar values based on your length scale. Doing tests like these can help you know whether or not you're resolving the smallest change in energy that you can.
In [ ]:
Copied!
